Hardware-Friendly Implementation of the Correlated Pink Noise Generator


The stochastic pink noise generator algorithm as described on the newpink.htm page generates a pink process that can take on any value in a continuous range. Many physical processes have a similar property. But it is not a property necessary for "pinkness." As mentioned there briefly, Andreas Robinson observed that the choice of a 2-valued distribution for each generator results in an algorithm in which most of the arithmetic operations disappear. If all you really care about is generating the right kind of power spectrum, and you don't care about the choppy distribution of signal levels, this might be just what you are looking for.

Software Implementation

The idea is clearest in a software-oriented implementation that you might consider if you are going to drive a digital-to-analog converter device directly from a parallel digital port. Andreas refers back to the original algorithm using a uniform distribution:

So, if you constrict ur2 to be either 0 or 1 (i.e binary), all sorts of interesting things happen.

First, the speed of an LFSR white random number generator [increases], since ur2 = rand requires a single random bit, rather than the 15 bits that are typical.

Second, you can see that you do not really need the multiplication anymore. The C code would look like this:

   contrib[stage] = ur2 ? pA[stage] : 0;

(Actually it is

   contrib[stage] = ur2 ? pA[stage] : -pA[stage];

but it makes little practical difference.)

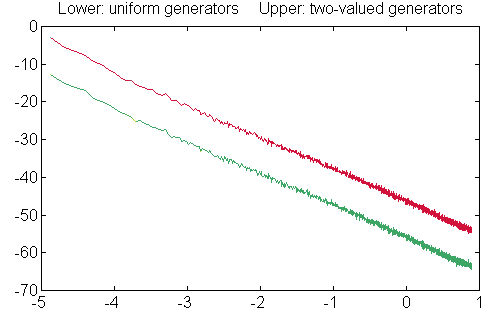

If there is any doubt that this scheme works, the following plot compares the output results from using uniformly-distributed and two- valued randomized generator stages. Both the response level on the vertical axis and the frequency on the horizontal axis are logarithmic. You can see that the only significant difference in the spectrum is a constant gain factor.

Compare generator distribution schemes

For hardware-oriented applications, using 0 or +pA[stage] for the output levels as he suggests offers some minor practical advantages. An output range from 0x0000 to 0xFFFF rather than 0x8000 to 0x7FFF needs a little less tweaking to drive D-to-A converters directly. You won't care about the output bias if you capacitively couple the final output signal — not a bad idea anyway.

In addition to this simplification in the updating logic, the arithmetic to sum the contribution of the generator stages can be avoided as well.

As a consequence genout = sum(contrib) will only return one of 2^5 = 32 possible sums, so why not put them in a table?

The output data table can be built by hand and placed into static storage without much difficulty, but Andreas provides the following algorithm in C for offline analysis to generate the data. This is only done once to initialize the data arrays.

void Setup()
    const double pA[] = { 3.80240, 2.96940, 2.59700, 3.08700, 3.40060 };
    double pASum = 15.8564;
    int i;

    // Build lookup-table
    for (i = 0; i < 32; i++)
        gensum[i] =
            ((((i &  1) != 0) ? pA[0] : 0) +
             (((i &  2) != 0) ? pA[1] : 0) +
             (((i &  4) != 0) ? pA[2] : 0) +
             (((i &  8) != 0) ? pA[3] : 0) +
             (((i & 16) != 0) ? pA[4] : 0));
        gensum[i] = (gensum[i] / pASum) - 0.5;

As a practical matter, the final generator outputs are going to be used as fixed point values anyway, driving a digital port, so you might as well scale the result for the output range you want in fixed point. Observing, as Andreas did previously, that you probably don't care about DC offsets, you can scale to the maximum 16-bit output range [0,65535u] for a 16-bit output converter as follows.

       gensum_fixed[i] = (unsigned int)(gensum[i]*65536.0/pASum);

The Runtime Code

Andreas suggested the following code, implementing the 2-valued generator approach in double precision like the original algorithm description.

double GetPinkValue()
    const   double pSum[] = { 0.00198, 0.01478, 0.06378, 0.23378, 0.91578 };
    extern  int    gsidx;
    extern  double gensum[];

    int i;
    double ur1 = Rand();    // Returns random 0.0 to 1.0
    int    ur2 = Rand1();   // Returns random single bit

    for (i = 0; i < 5; i++)
        // Find the bit to be updated
        if (ur1 < pSum[i])
            // Clear selected bit in the global index variable
            gsidx &= ~(1 << i);
            // Replace it with a new randomized bit value
            gsidx |= ur2 << i;
            // Exit loop, do not update any other bits!
    return gensum[gsidx];

Variable gsidx preserves the states of the generators from one pass to the next. During the course of the algorithm, the bits in gsidx are adjusted to select the appropriate entry of the table previously computed. The final line extracts the tabulated value.

If you are implementing this with a fixed-point processor, there are a few more variations you can try.

  1. After Andreas's implementation eliminates almost all of the arithmetic, the double precision no longer buys much. You could operate in fixed point directly. Compiler-supported 16-bit arithmetic remains necessary for testing the cumulative probability levels.

  2. Andreas trusts his compiler to optimize loops well. If it does that, the loop disappears! A really smart compiler will be able to unroll the loop. In the logic sequence that remains, at most one update is applied per call. For the truly paranoid who don't trust compilers and never will, you can unroll the loop manually.

  3. If you use a bitwise randomizer for pseudo-random number generation (Andreas uses a Linear Finite Shift Register), you can use the first 15 bits for the selection of the generator stage for updating, and the last bit for determining whether the selected generator stage toggles or not. For this special case (and we do have to be careful) one of the random generator calls can be avoided.

  4. The evaluation order of the tests can be reversed, as suggested in the algorithm description page, to test generators in the order from most likely to update to the least likely. There is a marginal speed improvement that results from avoiding some testing arithmetic.

  5. When updating uniformly distributed generators, the probability of repeating the same value twice is vanishingly small. But this changes completely with the two-valued generators — the probability that a generator keeps the same output value is 50%! Taking advantage of this detail, we can check for the case that nothing changes first, and avoid about half of the logic computations.

With these variations, things occur in a different order so the code looks different, but the effect is the same.

// Determine the current pink signal output value
unsigned int GetPinkValue()
    const unsigned pSum[] = { 130u, 1098u, 4180u, 15320u, 60016u };
    unsigned ur   = Rand();    // Returns uniform random 0 to 65535u
    unsigned mask = 0x10;      // Start processing from last generator

    extern unsigned  gsidx;
    extern unsigned  gensum_fixed[];
    do  {
      // There is a 50-50 chance that updating a 2-valued stage won't
      // change anything. Take advantage of this special case first!
      if  ( ur & 1 )  break;

      // There is a small probability that no generators change anyway.
      if  ( ur > pSum[4] )  break;

      // If that didn't happen, find the right generator and toggle it.
      ur > pSum[3]  ?  gsidx ^= mask, break  :  mask >>= 1;
      ur > pSum[2]  ?  gsidx ^= mask, break  :  mask >>= 1;
      ur > pSum[1]  ?  gsidx ^= mask, break  :  mask >>= 1;
      ur > pSum[0]  ?  gsidx ^= mask, break  :  mask >>= 1;
      gsidx ^= mask;
    } while (0);  // Never loops back!

    return gensum_fixed[gsidx];

A Hardware Implementation

In Andreas's first implementation, the output lookup table converts the patterns of 5 on/off bits into longer patterns of on-off bits suitable for a digital data file or for driving a converter hardware port. Digital to analog conversions are typically done using resistors with value 1R, 2R, 4R, etc. — the lower the resistance, the more current that flows when the corresponding bit becomes active high. The sum of the currents is then converted to a voltage.

But Andreas observed that this kind of geometric progression is not necessary. You can eliminate the D-to-A device and apply appropriate non-binary weights for the five on-off generator bits directly. The scaling values from the general algorithm description are:

    pA =   [  3.8024    2.9694    2.5970    3.0870    3.4006  ]

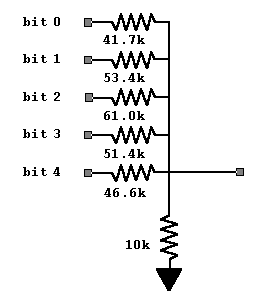

mixer network for pink noise

You can apply these scaling values by picking special resistance values in a resistor network. To keep the current paths for each bit independent, usually an operational amplifier is used. However, Andreas has done an analysis to account for the interactions among the signal lines in the resistor network, thus avoiding the operational amplifier. I have verified his design, but if you want to verify it for yourself, you can find the full details with exact design values in his pinkgen.c code. If you would like, you can compare to his hand-optimized 8-bit AVR microcontroller implementation avr-pinkgen.asm in assembler, which also addresses timing considerations.

Once you have this circuit built, all you have to do is connect it directly to the bits on a parallel digital output port. The output table used to drive an ordinary digital-to-analog converter is no longer necessary. Just send the computed "index" variable straight to the port.

      // return gensum[gsidx];         No longer needed!
      parallel_write(port, gsidx);

Back to the general algorithm description
Back to the technology index

Site:    RidgeRat's Barely Operating Site    http://home.earthlink.net/~ltrammell
Author:  Larry Trammell    Created: Jan 19, 2006    Revised: Jan 07, 2007    Status: Experimental
Contact: NOSPAM ltramme1476 AT earthlink DOT net NOSPAM
Related: See the 'definitive pink noise site' at http://www.firstpr.com.au/dsp/pink-noise/
Restrictions: This information is public domain.
Thanks to Andreas Robinson for contributing his ideas and code.
